Place of Origin:
Guangdong, China
Brand Name:
SurgScience
Certification:
CE and ISO13485
Model Number:
Bladed Trocar
Contact Us

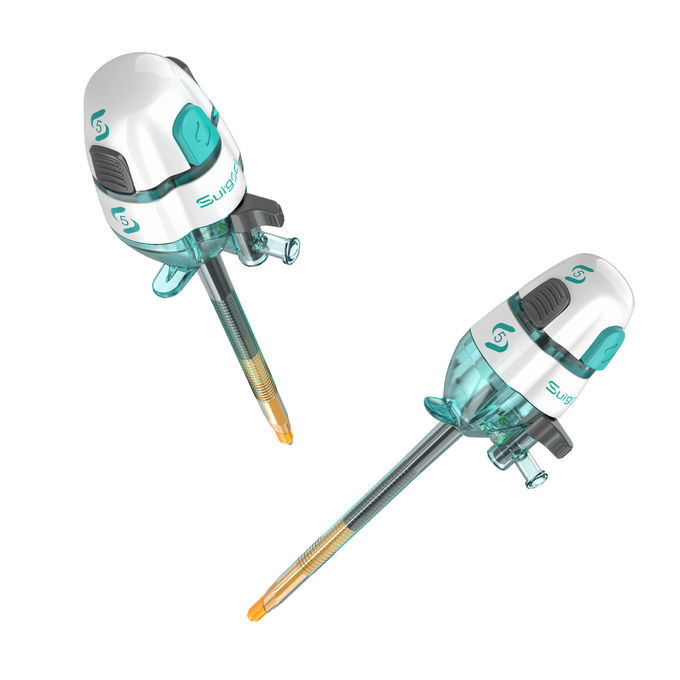

Main Features of Surgical Disposable Bladed Trocar 5mm:
Olive-Shaped Ergonomic Design
The olive-shaped handle is ergonomically designed to better fit the user’s palm. The oval shape makes the grip more comfortable and ensures better force during puncture.
The handle of the trocar is designed in the shape of an olive. Such a design is ergonomic and makes the trocar fit better in the palm. The oval shape makes the grip more comfortable and ensures better strength during insertion.
Secure Locking Mechanism
The lock mechanism has two states when in use, which are safe state and puncture state.
Safe State:
Secure button released=safe mode. Blade detained in sheath.
In the safe state with lock button unpressed, the blade is prevented from being damaged or accidentally injured.
The safe state is when the lock button is not pressed. In this state, the blade is covered by the safety shield. It can prevent the blade from being damaged or accidentally injured due to unsheathing.
Puncture State:
Secure button pressed=puncture mode. Blade pushed out when puncturing and retracting into sheath afterward to prevent injuries to organs.
In puncture state with lock button is pressed, the blade will be unsheathed during insertion. The blade will be shielded and protected by the spring shield when insertion is completed.
The puncture state is to press the lock button. During insertion, the blade is unsheathed to cut the tissue. After the obturator penetrates tissue, the safety shield springs forward, protecting the blade and returning into the safe state, preventing accidental damage to organs.
Blade Protective Sheath Design
Design with protective sheath to prevent blade damage or accidental injury before penetration. After the obturator point penetrates the body, the shield will spring forward to extend into the body cavity, surrounding the point of the obturator. The shield thus protects the internal body organs from inadvertent contact with the point of the obturator.
Product Specification:
Surgical Disposable Bladed Trocar 5mm provides 2 specifications that can be used in various types of laparoscopic surgeries.
Automatically blade retracting system to ensure the retraction of the blade after insertion. Protecting both patient and surgeon from injuries.
Product Code-Quickpass | Diameter | Length |
T05075P | φ5mm;Universal sleeces | 75mm |
T05100P | φ5mm;Universal sleeces | 100mm |
Product Certificates:
Product Packaging:
Product Application:
Our Production Lines:
FAQ:
Q: Are you a factory or a trade company?
A: We are a medical technology company with a wholly-owned factory in Shenzhen city.
Q: What are your main products?
A: Disposable laparoscopic trocars, ultrasonic scalpels, veress needles and specimen pouches are the 4 main products we make. We are also reseraching endo cutting stapler and some other products.
Q: What is the process of your trocar production?
A: Incoming inspection→Ultrasonic cleaning→Assembly in clean workshop→Inspection→EC sterilization→Resolution→Shipping
Q: How can I make an order?
A: Inquiry→Quotation→Order→Payment→Delivery→Deal→Feedback
Q: How can I pay?
A: You can pay through the payment link we send to you on Alibaba.com. We have a online store on this platform. Or you can pay to our company account.
Q: Can I receive samples first?
A: Sure. Samples will be prepared in 7 days.
Q: Can I get any discount?
A: The price is negotiable, we can offer you discount according to your order quantity.
