Place of Origin:
CE and ISO13485

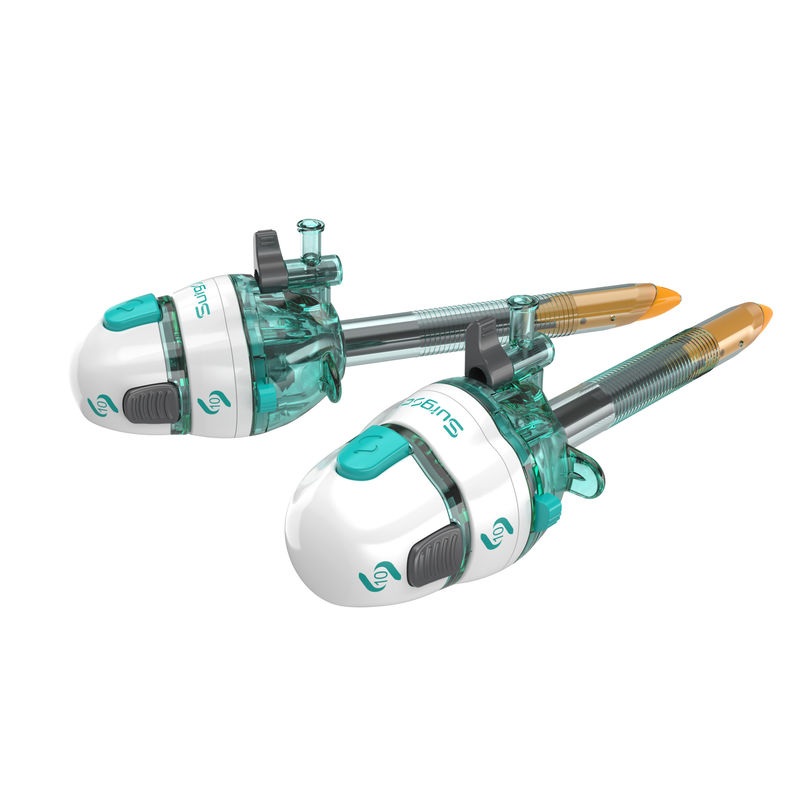

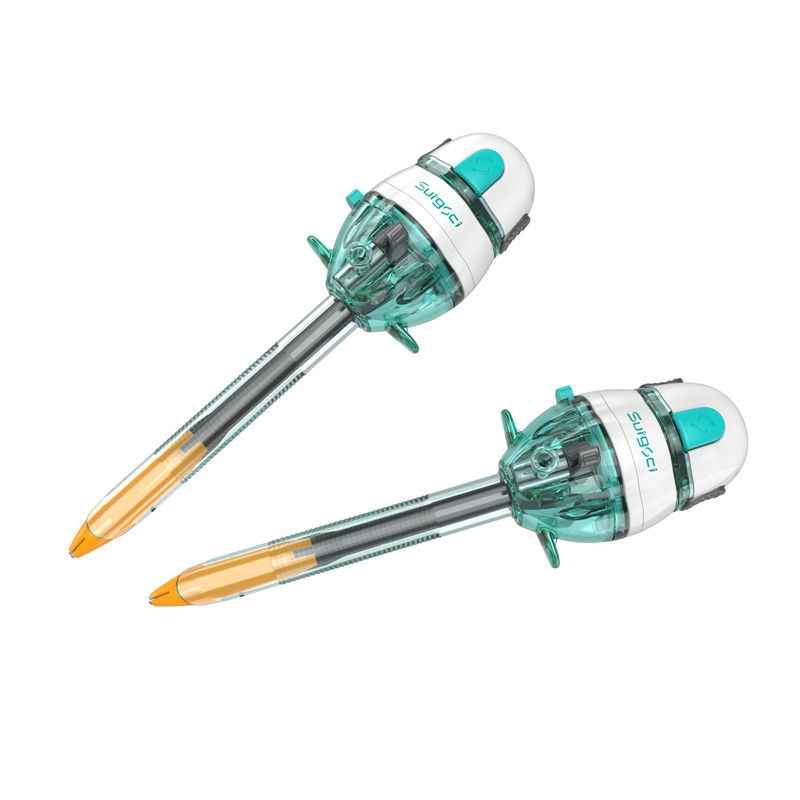

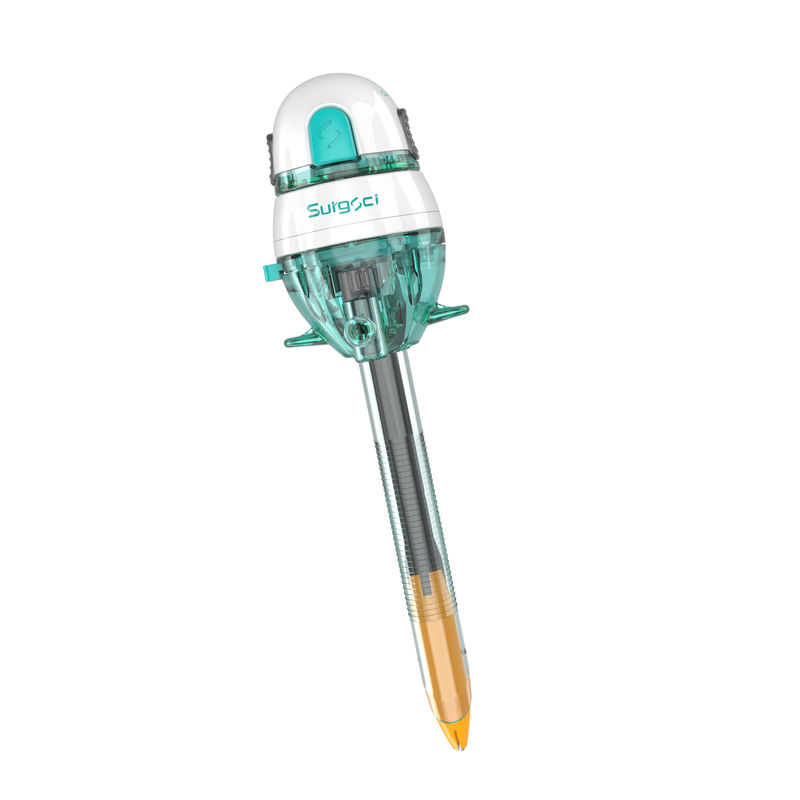

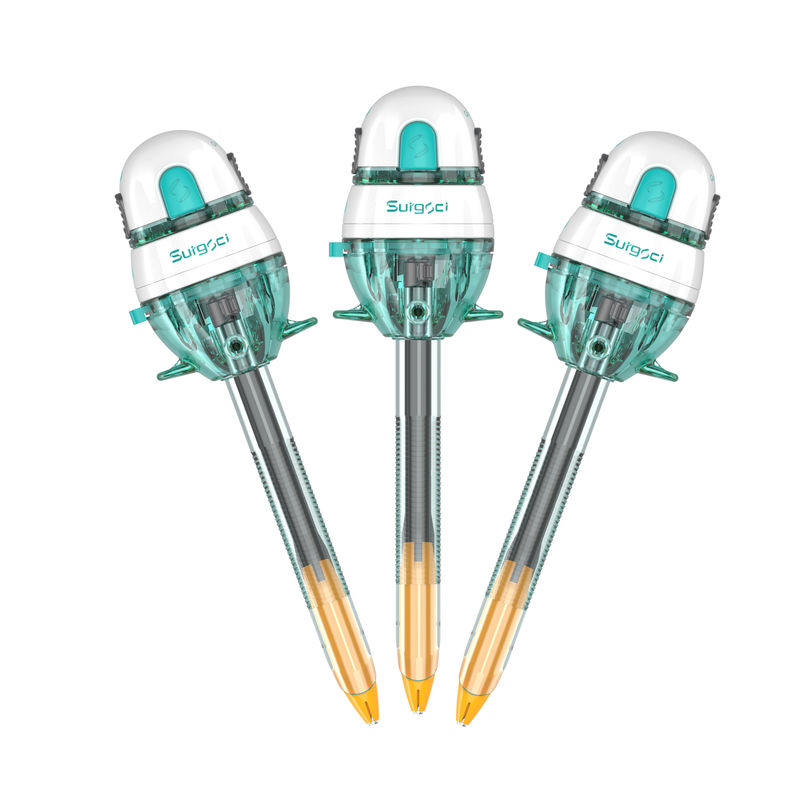

Specification of CE Marked 10mm Diameter Disposable Laparoscopic Bladed Trocar:
CE marked single-use laparoscopic blade trocars are available in 4 sizes for use in various types of laparoscopic procedures. 10mm is one of them.
The automatic blade retraction system ensures the blade retraction after insertion. It protects patients and surgeons from harm.
|TI0L100P||φ10mm; Universal sleeces||100mm|
|T12L100P||φ12mm; Universal sleeces||100mm|
1. Olive-Shaped Ergonomic Obturator
The 12mm bladed trocar has ergonomic obturator design. It fits user’ palm better. Making it more comfortable to hold and puncture.
2. Bevel-Cut Tunnel Head
45 degrees bevel-cut tunnel head of the 12mm Quickpass makes it easy for specimen to remove. It also gives more maneuverability.
3. Secure Button Controls the Retraction and Deployment of the Blade
There are two modes, which are safe mode and puncture mode.
Secure button release=Safe mode. Blade will be detained in shield.
Secure button pressed=puncture mode. Blade will be pushed out when puncturing and retracted into shield after that to prevent injuries to organs.
4. Blade Design
The 12mm Quickpass has a unique blade design with shield on both sides. Preventing blade from abrasion before insertion. Blade retracts back automatically into shield once enter peritoneum for safety purpose.
5. Inverted Tooth Structure
Thread cannula is designed with inverted tooth structure. It ensures the trocar firmly fixed on the abdominal wall during operation.
6. Durable Layer Sealing Structure
Durable layer sealing structure guarantees ZERO air leakage. Finger rests designed with concave fit fingers perfectly. Help surgeons easily rotate the trocar during insertion.
