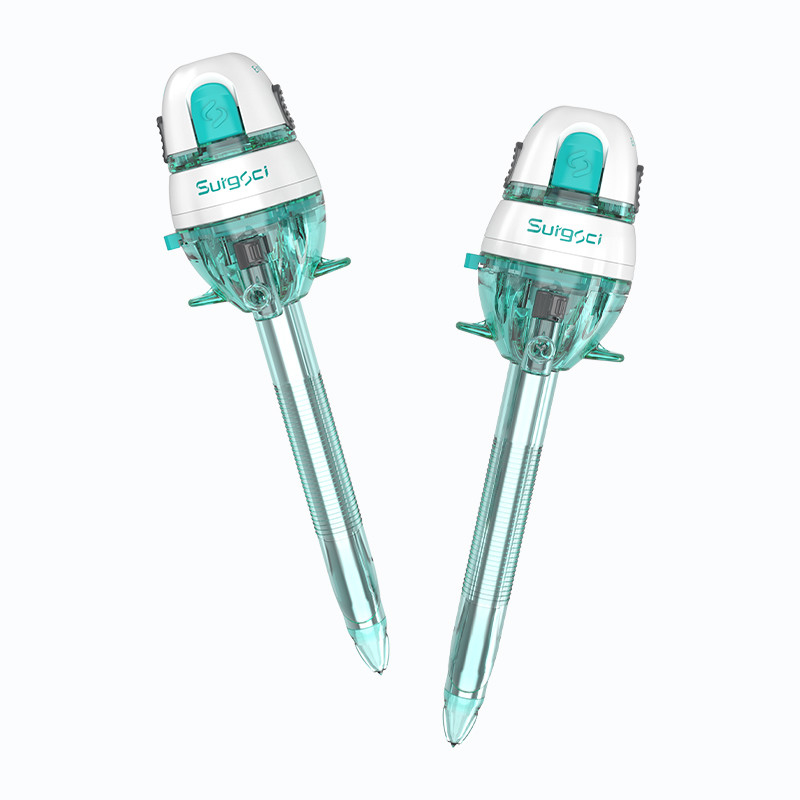

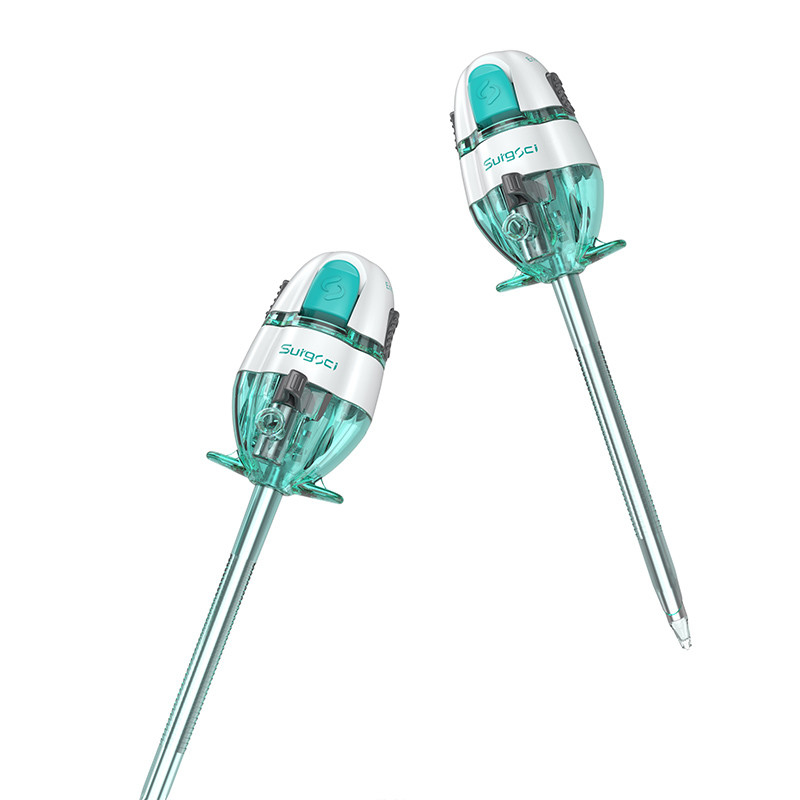

12mm Diameter Disposable Laparoscopic Trocar Class II For Medical Instrument

12mm Diameter Disposable Laparoscopic Trocar Class II For Medical Instrument

12mm Diameter Disposable Laparoscopic Trocar

Disposable Laparoscopic Trocar Class II

Place of Origin:


Brand Name:



CE ISO13485

Model Number:


Contact Us

Request A Quote
Product Details
Shipping Method:
By Air, By Sea, By Express
Access Port
Sterile Disposable
After-Sale Service:
Online Technical Support
Shelf Life:
3 Years
Laparoscopic Surgery
Product Description

Product Description:

Disposable Laparoscopic Trocar Class II for Medical Instrument

The Trocar Access method is widely used in laparoscopic surgery to place the initial trocar. This method allows for the visualization of each tissue layer before insertion, making potential injuries, and air leakage at the trocar site, minimal; particularly for cases involving obese patients.

We carry the Endopass Visible Tip Optical Disposible Laparascopic Trocar. It is certified-CE marked and produced under ISO 13485 quality standards, and is intended for a single patient only when puncturing of the abdominal cavity as well as the supply of gas during laparoscopic surgery is needed.

We offer optical trocars with visible tips in 7 varieties of size: 5mm, 10mm and 12mm diameters, and lengths of 75mm, 100mm, and 150mm.



Stable Thread Design

The thread-shaped surface of this trocar has an inverted tooth design, which increases the sleeve’s fixation to the abdominal wall to prevent sliding, both when instruments enter and when they are removed from the sleeve.

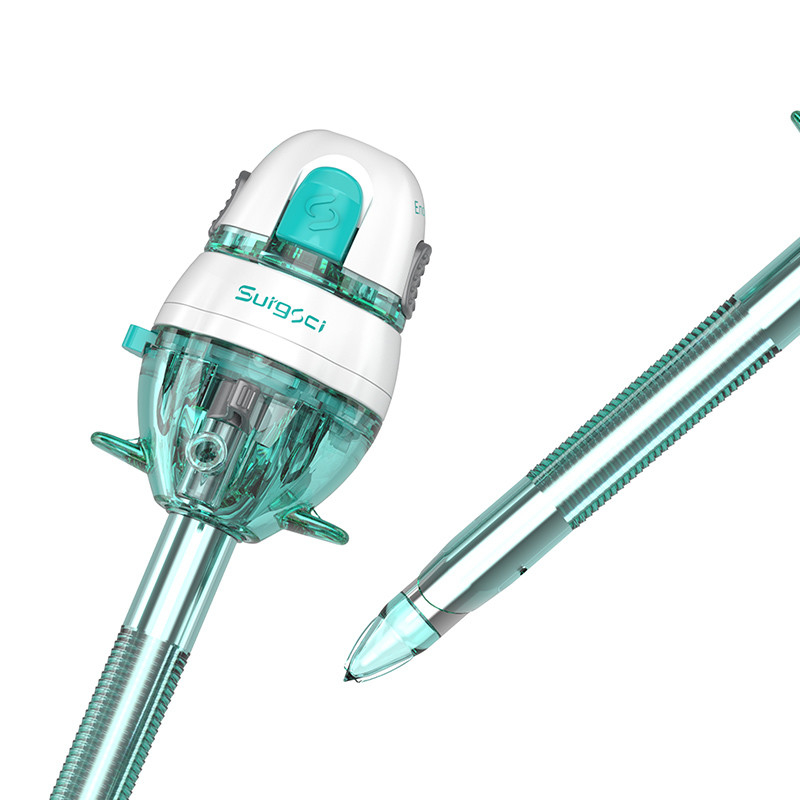

None-Bladed Transparent Tip Design

This trocar’s non-bladed tip has been designed to separate tissues instead of cutting them, resulting in reduced tissue damage. The transparent conical head is a great help in avoiding any blind insertions and organ injuries, and provides the user with good visual feedback when the endoscope enters the obturator.

Endoscope Secure Lock

This trocar also provides an easy-to-operate tunnel lock, which secures the endoscope from sliding to maintain stable visualisation.

Stainless Steel Needle

Finally, the stainless steel needle used in this trocar design makes it even more reliable compared to conventional plastic versions.


Technical Parameters:

Parameter Value
Material Medical Grade Plastic
After-Sale Service Online Technical Support
Feature Sterile Disposable
Function Access Port
Product Name Disposable Laparoscopic Trocar
Sterilization Method EO Gas Sterilization
Packaging Individual Pouch
Length 75mm/100mm/150mm
Color White And Blue
Properties The Basis Of Surgical Instruments


Endopass laparoscopic trocars can be employed for a variety of surgical procedures. For instance, it can be used in cholecystectomy (gall bladder surgery), nephrectomy(removal of the kidneys), radical prostatectomy (total removal of the prostate gland, radical resection of rectal carcinoma (cancer originating in the rectal lining), hysterectomy, bariatric (weight-loss) and appendectomy.


Packing and Shipping:

Packaging and Shipping

Disposable Laparoscopic Trocar should be packaged and shipped according to the following instructions:

  • The product should be packaged with strong cardboard boxes.
  • The product should not be exposed to direct sunlight, high temperature, or humidity when being shipped.
  • Shippers should take necessary precautions to ensure that the product is not damaged during transit.
  • The shipper should provide tracking information to the customer after the product is shipped.


  • Q: What is the name of the product?
    A: The product is called Disposable Laparoscopic Trocar, manufactured by Surgsci and its model number is Endopass.
  • Q: Where is the product manufactured?
    A: The product is manufactured in China and has been certified with CE and ISO13485.
  • Q: What is the minimum order quantity for the product?
    A: The minimum order quantity for the product is 1.
  • Q: How much does the product cost?
    A: The price of the product is negotiable.
  • Q: How is the product packaged and delivered?
    A: The product is packaged as 1 set per package and it will be delivered within 7-10 working days. Payment terms are T/T and we can supply up to 10000 sets per month.
